2013-2026 Dodge Ram 3500 Front Track Bar

SKU: TF-RAFTB-18MM

$400.00
/

Fitment:

  • 2013+ 3500 SRW and DRW
  • 2014+ 2500 Dodge Rams
  • 2014+ Power Wagons
  • May fit Chassis-Cab trucks. Reach out before purchasing.
  • Does not function with larger aftermarket diff covers.
Details:

  • First place to start if your vehicle has ANY strange handling traits.
  • Made from 1.50"x3/8" wall 1026 DOM tube.

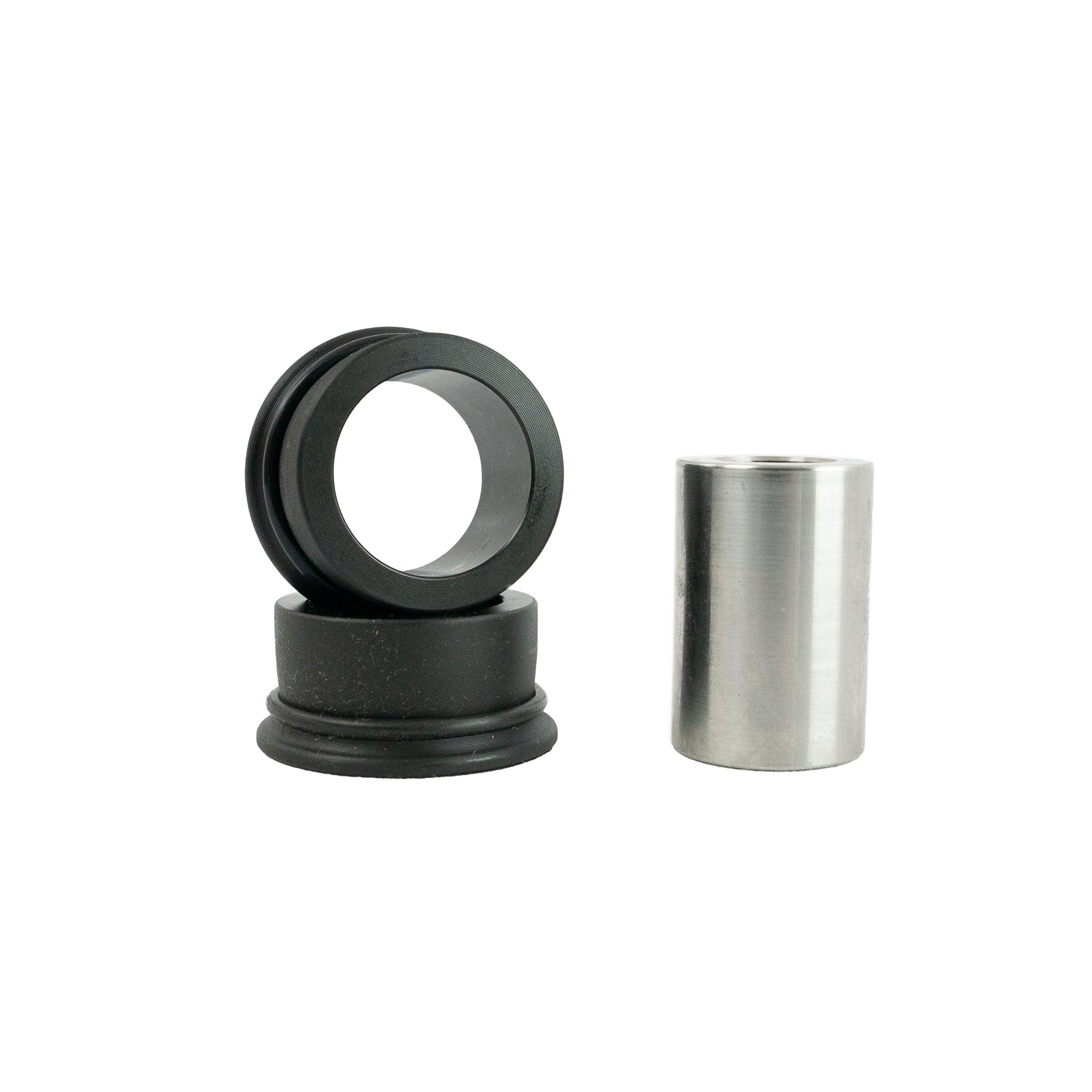

  • Delrin machined frame side bushing.
  • CNC machined form threaded Heim joint tube end.
  • Bead blast textured, then highest quality Powder Coated.
  • Adjustable length (within spec)
  • Grease fitting for frame bushing.
  • Extreme duty FK Teflon lined rod end at axle side.

The OEM 2013+ Track Bar has been upgraded from the previous 2003-2013 design, and is not "absolutely mandatory" to replace right away on a new truck, as previously suggested. If you're nearing 20,000 miles on the OEM Trackbar, it's a good idea to plan on getting our Trackbar as an upgrade.

Our Trackbar is designed to be VERY rigid. Often people will think that having a rigid track bar will give steering vibration and rattle. This is simply not true being that the Trackbar is technically a steering support. You want and steering supports to be as low deflection as possible.

Note on 2019+ trucks: While a rare occurrence, our trackbar can at times slightly rub the 2019+ Aluminum bolt-on frame side mount. This contact is VERY slight if at all, and causes no issue. If yours touches and you want to have zero contact at that location, a 30 second job with a flat file can provide all the clearance needed.

Included:

  • Assembled Front Trackbar (x1)

Trackbar replacement parts can be found here.

Product Installation Instructions

    Customer Reviews

    Based on 102 reviews
    96%
    (98)
    1%
    (1)
    1%
    (1)
    0%
    (0)
    2%
    (2)
    C
    Christopher Stack
    Works great

    I’ve used Thuren parts on three different 3500s and have been pleased with the outcome. Thuren makes the finest quality parts.

    T
    Tyler Dunmire

    Definitely made front end tighter

    K
    Kevin McGregor
    Best Steering Upgrade for 2014 RAM 3500 DRW

    I had the drunk weave from 60k miles on, tried the pitman arm support bracket, tried the rubber bushing rings, tried adjusting pump all with minor improvement. The Thuren track bar really firmed everything up and it no longer wanders all over the road. I did need a new bolt on the axle side as the threads got screwed up coming out under a little bit of pressure, make sure you are level and straight before starting. Directions mention flag nut on the frame side which my truck didn't have, it was just a nut with no flag, spent a while trying to understand how the suspension movement would strike the flag if it wasn't vertical just to realize it didn't apply to me.

    B
    Barry Chappelle
    2018 Ram Track Bar Replacement

    My 2018 Ram With The Thurn 2.25 Coils On The Front Since Almost New It Was Recomended To Change track Bar Out At 20K , I Had Almost 40K On Factory Bar No Real Issues , I Plan On Keeping This Truck For Amother 100 K So It Was Time To Upgrade Easy Install, Had Alignment To Thurn Specs. Drives Fine . Time Will Tell.

    I
    Irving Guzman

    2013-2024 Dodge Ram 3500 Front Track Bar
